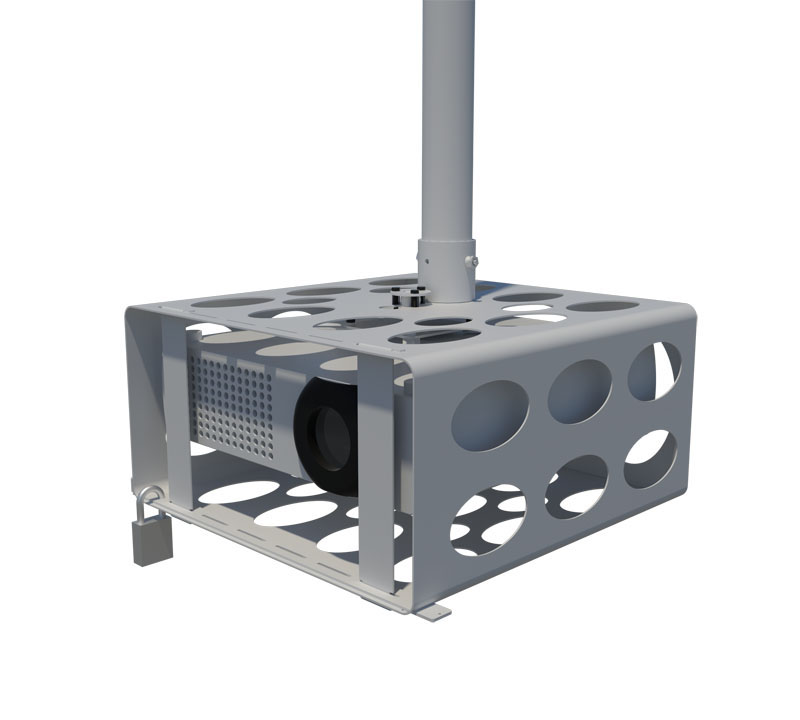

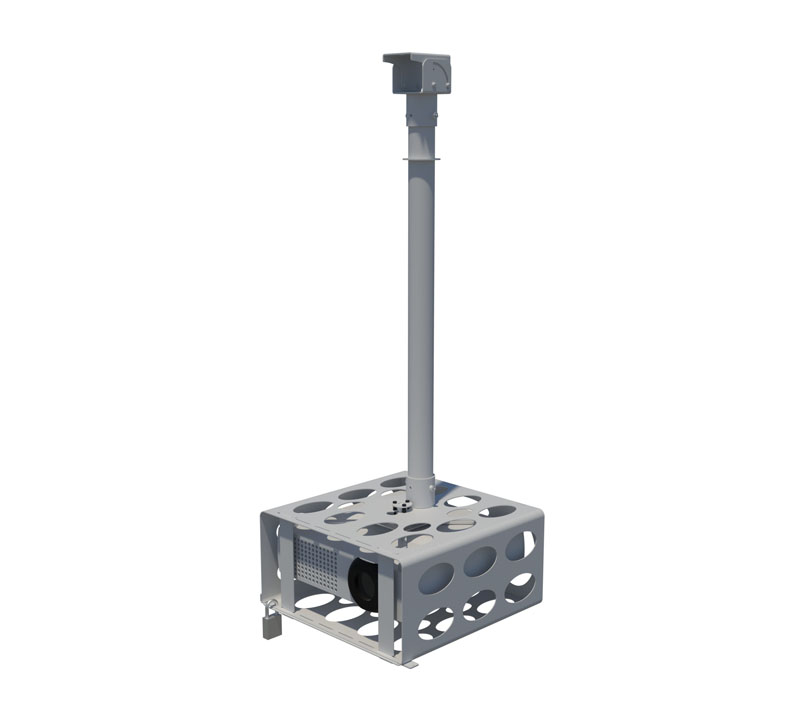

The Spider Vault is a lockable projector cage for education, public, recreation and other shared environments where equipment protection and controlled service access are required. Its detachable ceiling mount, controlled rotation, tilt adjustment and cable-access provisions support accurate installation without compromising the secure enclosure.
| Model | External cage W × D × H | Maximum projector W × D × H |
|---|---|---|
| Vault Jumbo | 700 × 750 × 350 mm | 640 × 580 × 280 mm |
| Vault XL | 610 × 600 × 300 mm | 566 × 520 × 230 mm |
| Vault L | 500 × 502 × 250 mm | 456 × 420 × 180 mm |
| Vault M | 350 × 430 × 200 mm | 305 × 350 × 140 mm |
Maximum projector dimensions do not include cable allowance. Dimensions are from the approved Spider Vault Projector Cage Range drawing, revision B, updated 7 April 2026. Confirm the projector, cable clearance and current drawing with Ultralift before ordering or construction.
Premium product guidance
Spider Vault (Cage) is a premium Australian-designed and Melbourne-fabricated projector lift or mounting system. It is best suited to commercial, education and specialist rooms where projector geometry, structure, security and service access need to be resolved together. Ultralift provides local engineering, CAD and technical support so equipment, structure, movement and service access can be considered before construction.
Final product selection depends on equipment, structure, available space, movement, access and the project brief. Contact Ultralift before construction details are finalised.
Product support
The Spider Vault protects a projector in a lockable mild-steel cage for education, public and shared environments while retaining cable and service access.
Provide the projector make, model, dimensions and weight, throw requirements, lens position, mounting surface and service-access needs. Confirm whether the cage will be ceiling-mounted or wall-mounted.
Use an AV installer who can confirm projector alignment, structure, cabling and service access. Long drops or unusual mounting surfaces may also require engineering input.
Three standard cage sizes are available: Vault M, L and XL. The maximum projector dimensions do not include cable allowance, so Ultralift must confirm the selected size and clearances from the projector and site details.
