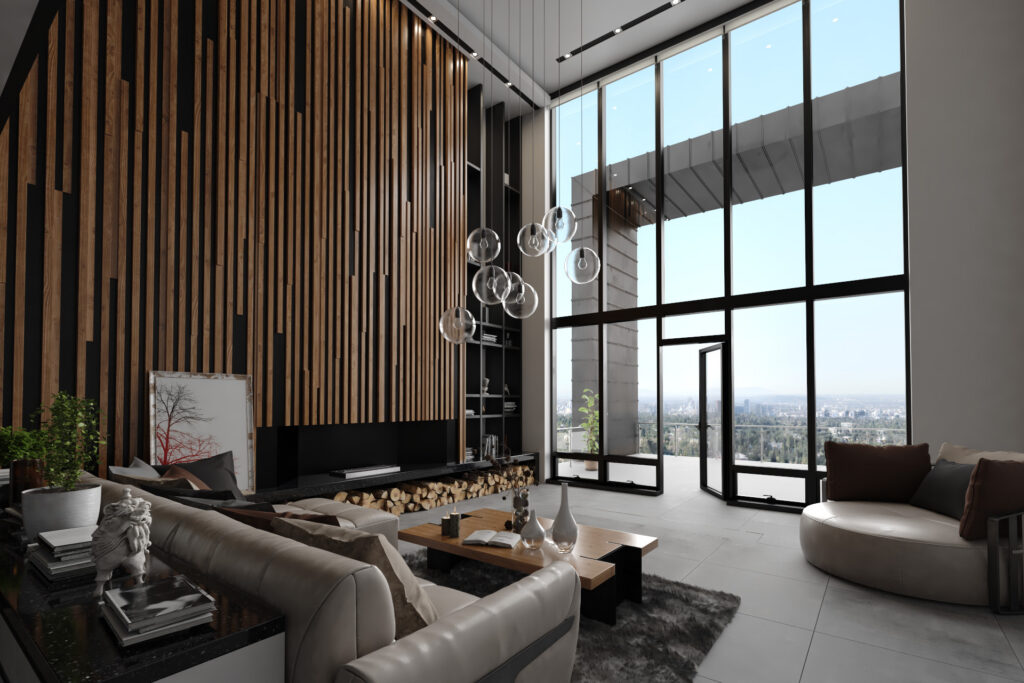

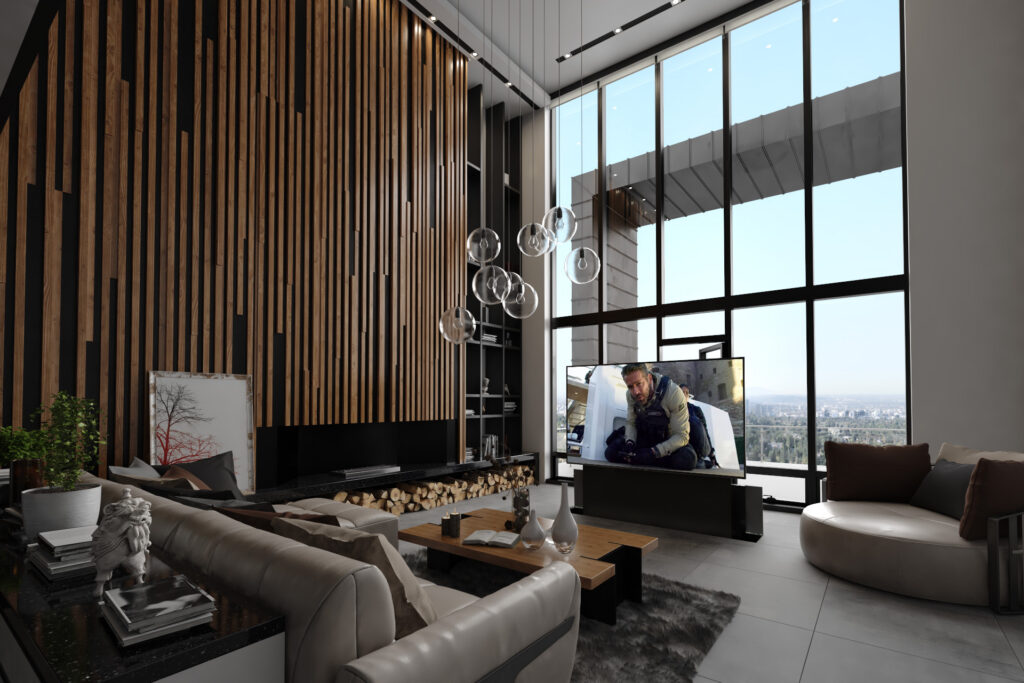

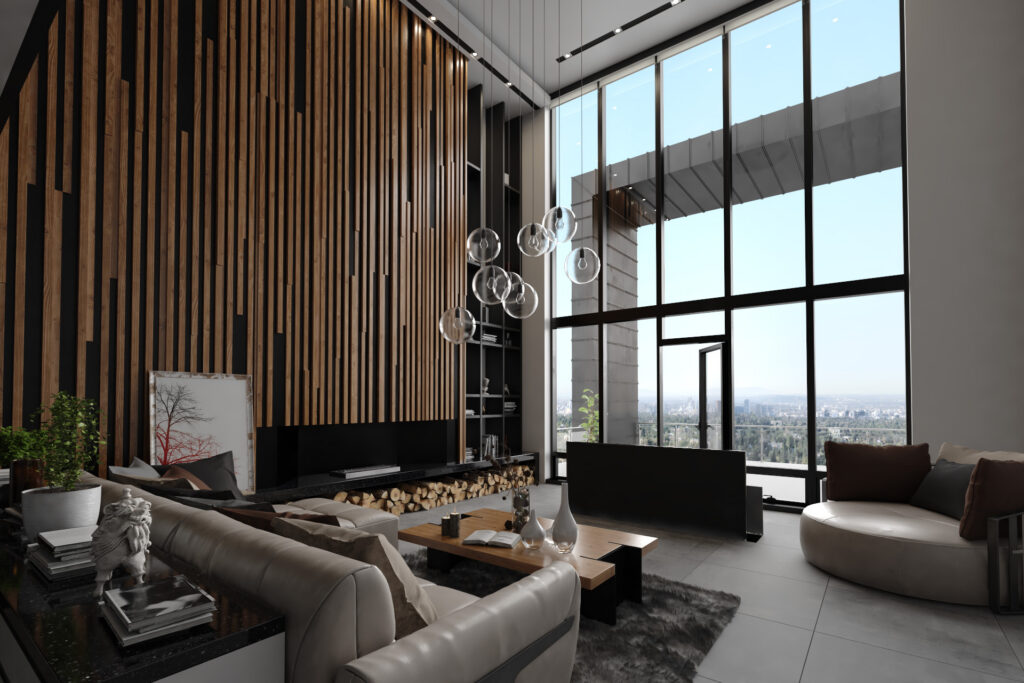

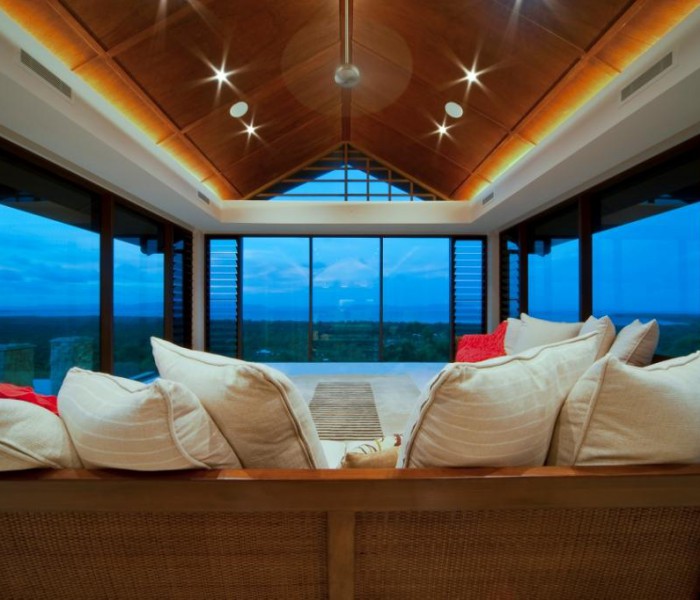

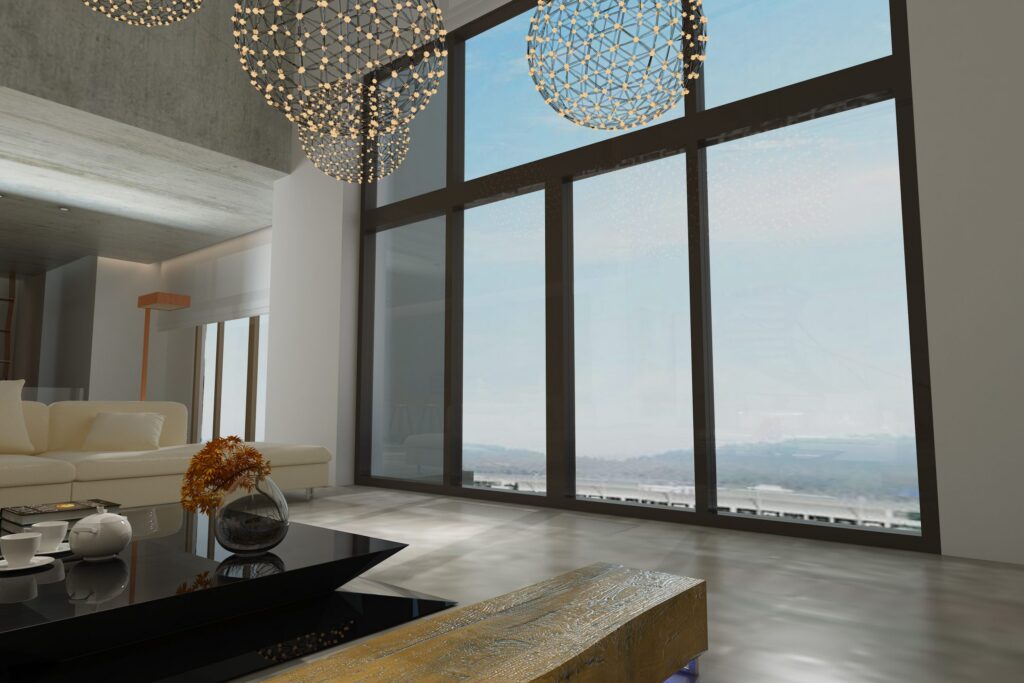

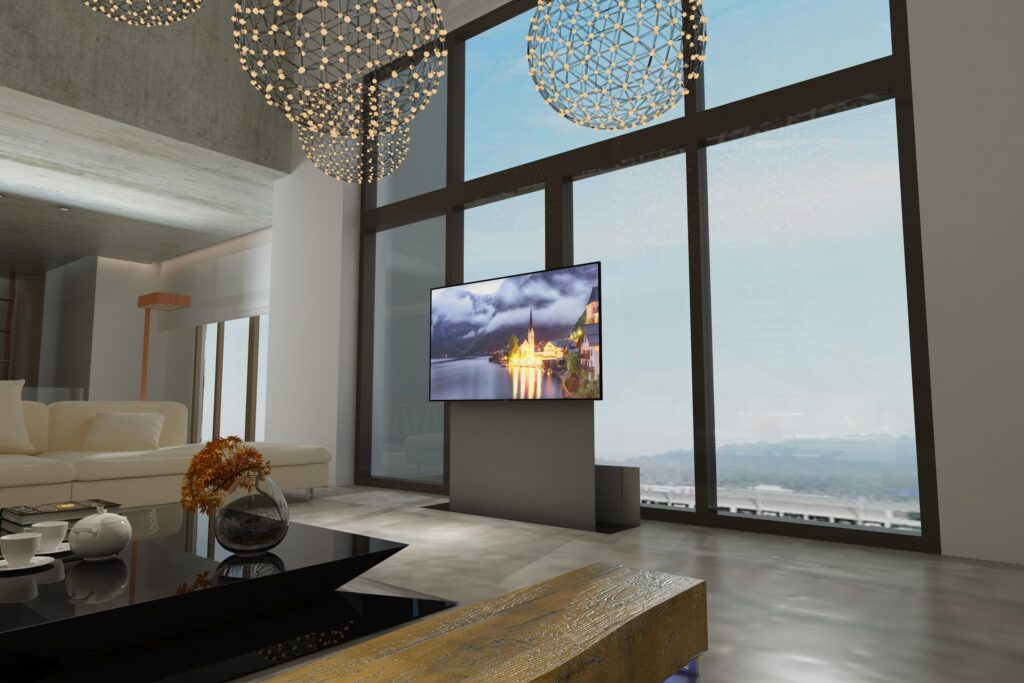

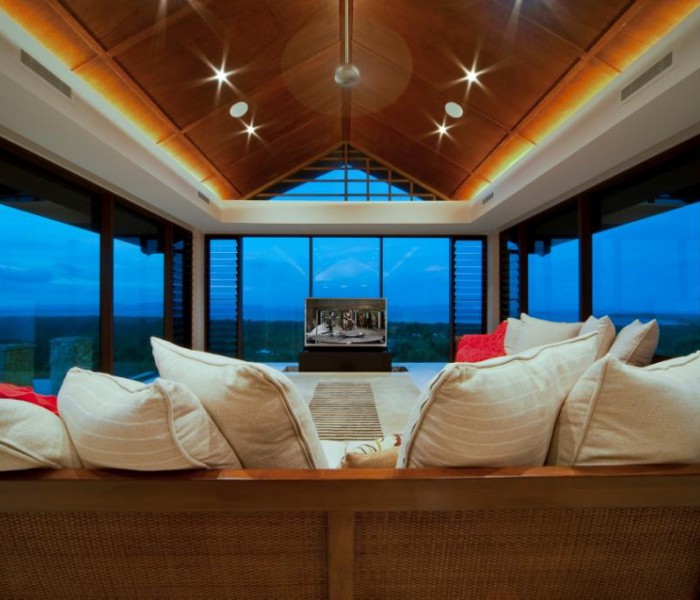

Raise your TV to a comfortable viewing height from the floor or within cabinetry.
The Atlas range delivers greater lifting height than Phoenix and Titan and can be installed in the floor or within cabinetry to suit your space. Fitted with two lifting columns, Atlas brings your TV up to 1.95 metres clear of its resting position.
Atlas is available in two maximum stroke heights to suit your installation depth:
Both configurations are also available with a supporting metal carcass, built to order around your proposed screen for easier installation. A manual swivel can be incorporated into either Atlas configuration as a bespoke design, allowing the TV to be turned by hand once raised. Every Atlas comes with a universal screen mount, all fixing hardware, an IR kit and remote control, ready to plug and play.
Ultralift supplies the TV lift mechanism only, not the cabinet or joinery, so you will need your own builder, carpenter or cabinetmaker to build the surrounding structure once dimensions are confirmed with us.
Not sure which TV lift is right for you? Compare Phoenix, Titan and Atlas.
Approved product document
Download the approved product guideline for dimensions, configuration information and project planning. Confirm the final model and project requirements with Ultralift before ordering.
Download product guidelinePremium product guidance
Atlas Lift is a premium Australian-designed and Melbourne-fabricated concealed cabinet or floor television lift. It is best suited to luxury residential, hospitality and commercial projects where a screen needs to disappear into joinery or a purpose-built cavity. Ultralift provides local engineering, CAD and technical support so equipment, structure, movement and service access can be considered before construction.
Final product selection depends on equipment, structure, available space, movement, access and the project brief. Contact Ultralift before construction details are finalised.
Product data
| Model | ATL-000 |
|---|---|
| Compatible screen size | Up to 100 inches |
| Minimum lift height to bottom of TV | 30 mm |
| Maximum lift height to bottom of TV | 1350 or 1950 mm |
| Maximum load including lid and TV | 80 kg |
| Maximum lid weight | 25 kg |
| Operating voltage | 240 V |
| Maximum power draw | 450 W |
| Drive quantity | 4 |
| Drive model | DL-12-XL |
| Drive stroke | 999 mm |
| Control channels | 1 |
| Available colours | Black or white; other colours by request |
Confirm equipment, structural, clearance and service-access requirements with Ultralift before construction.
Product support
The Atlas Lift raises a television from a floor cavity or deep cabinet where more vertical travel is needed than a standard cabinet lift can provide.
Provide the television make, model, overall dimensions, weight and VESA pattern, plus the cabinet or floor-cavity drawings, lid arrangement, viewing height and control requirements.
The lift mechanism should be installed by an experienced AV installer or electrician. Cabinetry is supplied separately and should be coordinated with a joiner after the lift dimensions are confirmed.
The lift configuration and surrounding joinery can be planned around the screen and space. Ultralift should confirm the lift dimensions before the cabinet or floor opening is built.
Plan your installation
Ultralift supplies the TV lift mechanism. Your cabinetmaker, carpenter or builder completes the surrounding cabinet, sideboard, credenza or floor structure once dimensions are confirmed.
