The Spartan lift has been designed to appeal to the most discerning customer who wants the ultimate in smoothness and quietness. As an added feature, when the TV is down you see nothing – no wires and no cables!
This lift discreetly hides all moving parts within the ceiling and uses the very latest in motor technology to make sure it is whisper quiet.
Salt-water treatment and corrosion-resistant finish options are available for suitable coastal and marine projects. The correct treatment depends on exposure, location, materials, enclosure, drainage and maintenance. Provide the site conditions so Ultralift can confirm an appropriate project specification.
Approved product document
Download the approved product guideline for dimensions, configuration information and project planning. Confirm the final model and project requirements with Ultralift before ordering.
Download product guidelinePremium product guidance
Spartan is a premium Australian-designed and Melbourne-fabricated motorised ceiling television lift. It is best suited to high-end residential and commercial interiors where a screen needs to be concealed overhead and lowered into a defined viewing position. Ultralift provides local engineering, CAD and technical support so equipment, structure, movement and service access can be considered before construction.
Final product selection depends on equipment, structure, available space, movement, access and the project brief. Contact Ultralift before construction details are finalised.
Product data
| Standard TV size options | 32, 43, 50, 55, 60, 65, 75, 85 and 100 inches |
|---|---|
| Product depth range by TV size | 180-215 mm |
| Approximate lift weight range by TV size | 45-140 kg |
| Operating voltage | 240 V |
| Maximum power draw | 200 W |
| Control | DP1U console and infrared remote |
| Optional control | Bluetooth remote by request |
| Maximum ceiling-panel opening angle | 107 degrees |
| Material | Aluminium |
| Available colours | Black or white powder coat; other colours by request |
Confirm equipment, structural, clearance and service-access requirements with Ultralift before construction.
Product support

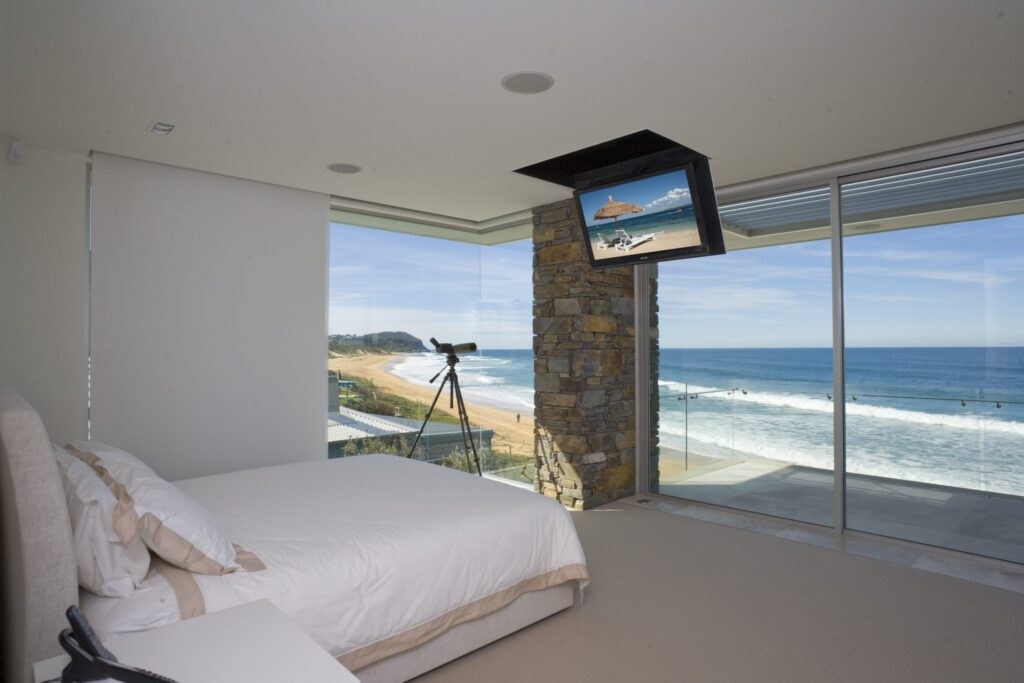

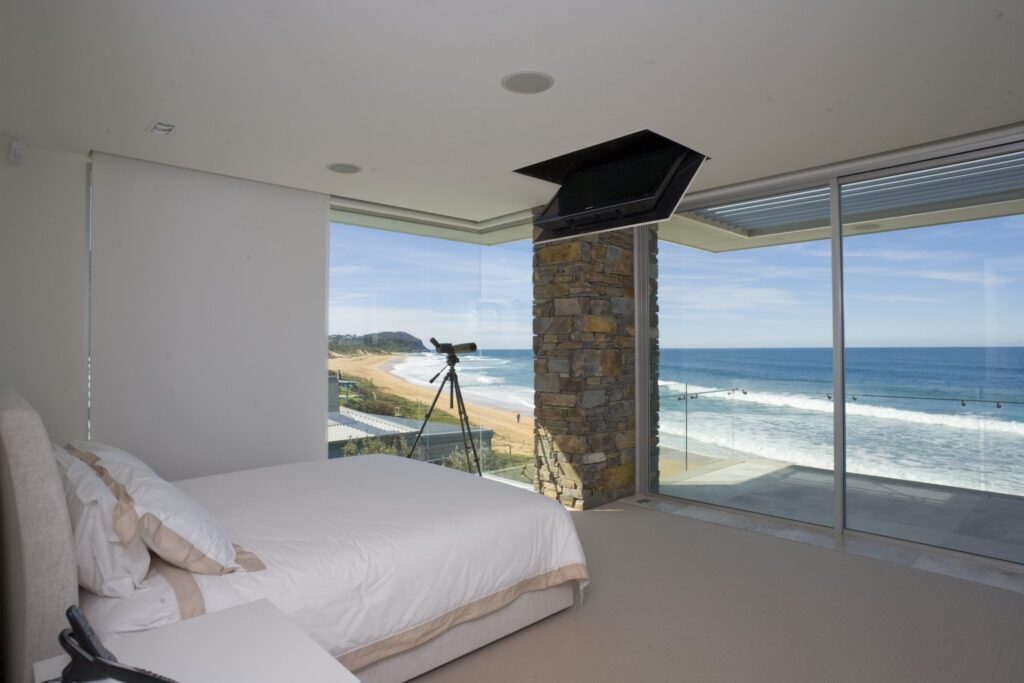

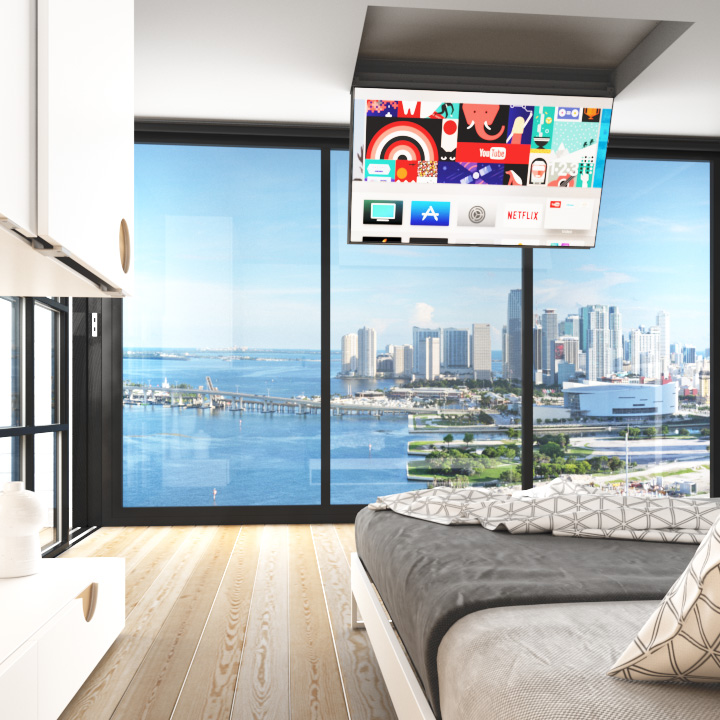

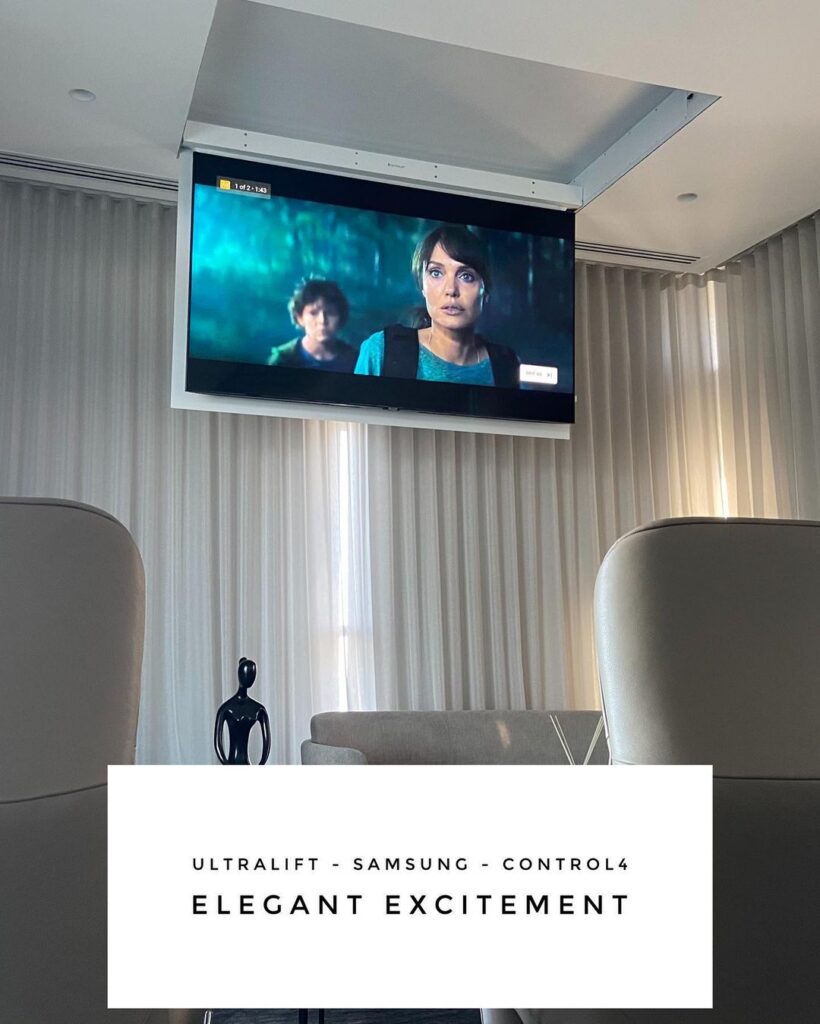

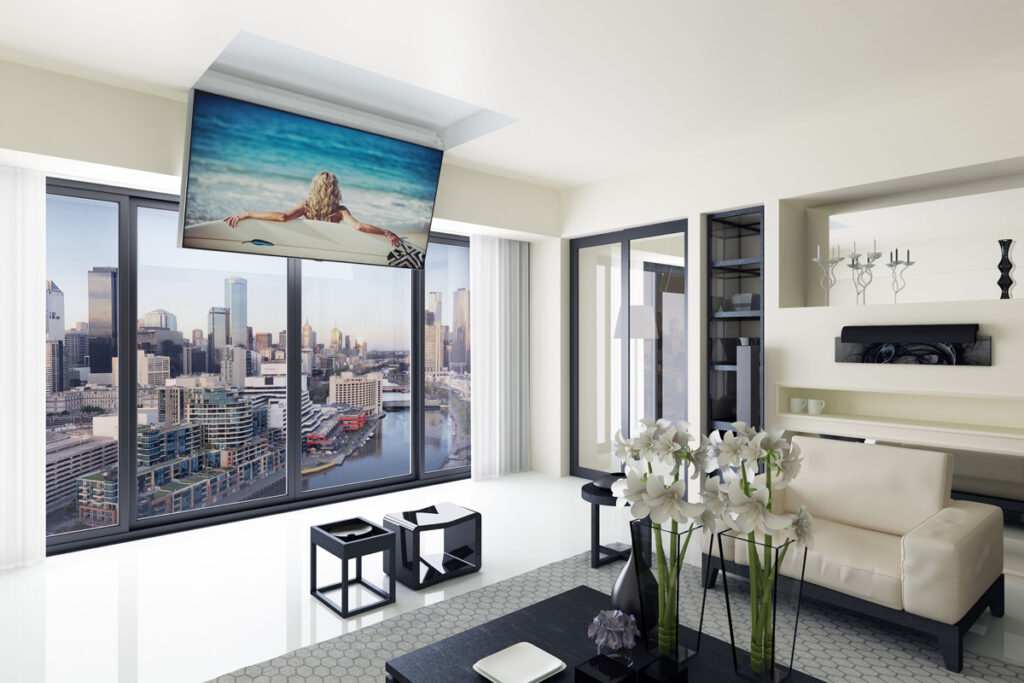

The Spartan folds a television down from a ceiling cavity while keeping the lift mechanism and cabling concealed above the finished ceiling.
Provide the television make, model, dimensions, weight and VESA pattern, plus the ceiling-cavity dimensions, finished ceiling level, viewing position, structure and control requirements.
Use an experienced AV installer and licensed electrical contractor. The builder or engineer responsible for the ceiling structure should confirm the support and access arrangement.
Screen size, ceiling panels, drop, finish and accessories can vary by model. Send the screen schedule and reflected ceiling details so Ultralift can confirm the configuration.
